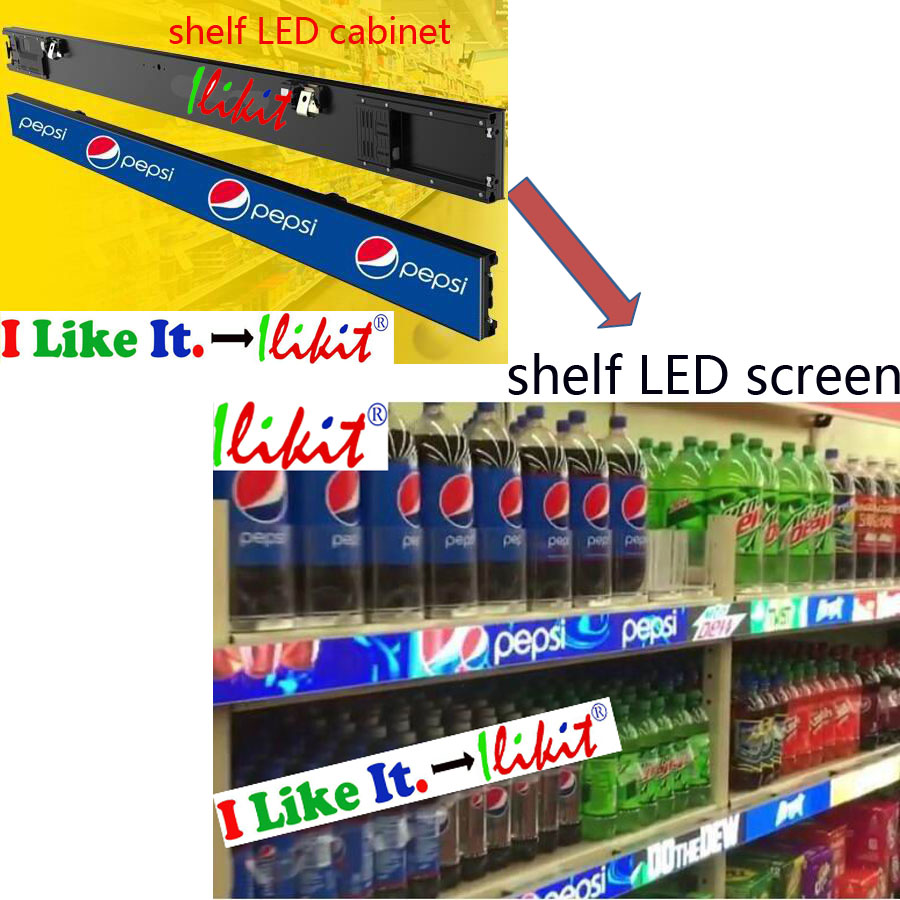

Model No.:shelf LED cabinet
- Model NO.
Trade show shelf LED panel GOB with high quality Kinglight SMD1212 fine pixel P1.5 anti-dust expos shelf LED display video wall advertising for Coca Cola in Metro shopping mall. Grocery shop shelf LED cabinet GOB with high performance SMD1010 nice pixel P1.25 anti-collision grocery store shelves LED billboard video wall advertising for Red Bull in Tesco supermarket. Variety store shelf LED cabinet GOB with high refresh rate SMD1515 narrow pixel P1.875 crashproof veriety shop shelves LED screen video wall digital advertise for Budweiser bear in Costco supermarket.
Emporium shelf LED cabinet with GOB high vision SMD1212 small pixel P1.5 crashworth emporium store shelf LED display video wall advertising for Carlsberg bear in Kroger supermarket. Notion store shelf LED cabinet GOB with high quality SMD1010 fine pixel P1.25 waterproof IP65 retail shelf LED billboard video wall advertisement for HeineKen bear in Auchan supermarket.
Emporium shelf LED cabinet with GOB high vision SMD1212 small pixel P1.5 crashworth emporium store shelf LED display video wall advertising for Carlsberg bear in Kroger supermarket. Notion store shelf LED cabinet GOB with high quality SMD1010 fine pixel P1.25 waterproof IP65 retail shelf LED billboard video wall advertisement for HeineKen bear in Auchan supermarket.
| Item | Unit | Parameter | Parameter | Parameter |
| Pixel Pitch | mm | 1.875 | 1.5 | 1.25 |
| Pixel Density | dots/㎡ | 284,444 | 444,444 | 640,000 |
| Module Resolution | dots | 160*32 | 200*40 | 240*48 |
| Cabinet Size | mm | 600*60 or 900*60 or 1200*60 600*60 or 900*60 | ||
| LED Chip | Epistar | SMD1515 | SMD1212 | SMD1010 |
| Drive IC | DP3264 or FM6124 | |||
| Brightness (White Balance) | cd/ ㎡ | ≥700 | ||
| Viewing Angle | degree(H/V) | 160 | ||
| Refresh Rate | Hz/S | ≥3840 | ||
| Scan | 1/32S | 1/40S | 1/48S | |
| Life Span | hours | 50,000 | ||
| Storage Temperature | ℃ | -35 -- +80 | ||
| Working Temperature | ℃ | -25 -- +60 | ||
| Working Humidity | 10-90％RH | |||
| Max. power consumption | W/PC | 18 or 27 | ||
| Ave. power consumption | W/PC | 5.5 or 8 | ||
| Cabinet Material | Aluminium | |||
| Warranty | 2 Years | |||
