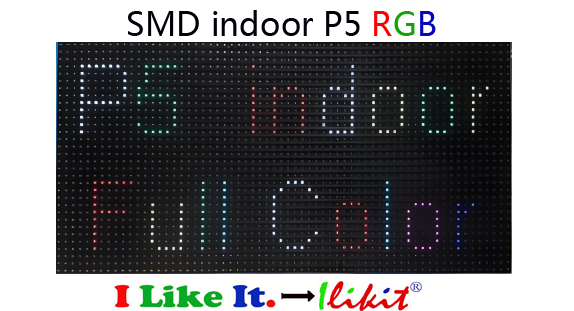

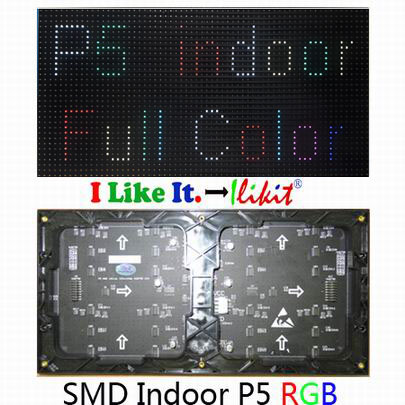

module No.:indoor P5 RGB LED module
- Model NO.
Interior P5 LED module with high quality Epistar SMD2121 LED lamp in wholesale factory price for canopy wall mounted stairway LED display video wall media advertising in Hermitage Museum. Indoor P5 fullcolor LED panel in high quality embedded LED canopy display video wall system made by Chinese professional manufacturer. Interior SMD P5 LED module is suitable for movable train LED electronic billboards or transportation facilities stair LED screen from your good partner, Ilikit LED.
| Item | Unit | Parameter |
| Pixel Pitch | mm | 5 |
| Pixel Density | dots/㎡ | 40,000 |
| Resolution | dots | 64×32 |
| Size | mm | 320×160 |
| LED Chip | Epistar(SMD1515) | |
| Drive IC | DP5020 or ICN2037 | |
| Brightness (White Balance) | cd/ ㎡ | ≥600 |
| Refresh Rate | Hz/S | ≥1920 |
| Scan | 1/16 S | |
| Life Span | hours | 50,000 |
| Storage Temperature | ℃ | -35 -- +80 |
| Working Temperature | ℃ | -25 -- +60 |
| View Distance | m | 5--60 |
| Best View Distance | m | 10--30 |
| Working Humidity | 10-90％RH | |
| Warranty | 1 Year | |
