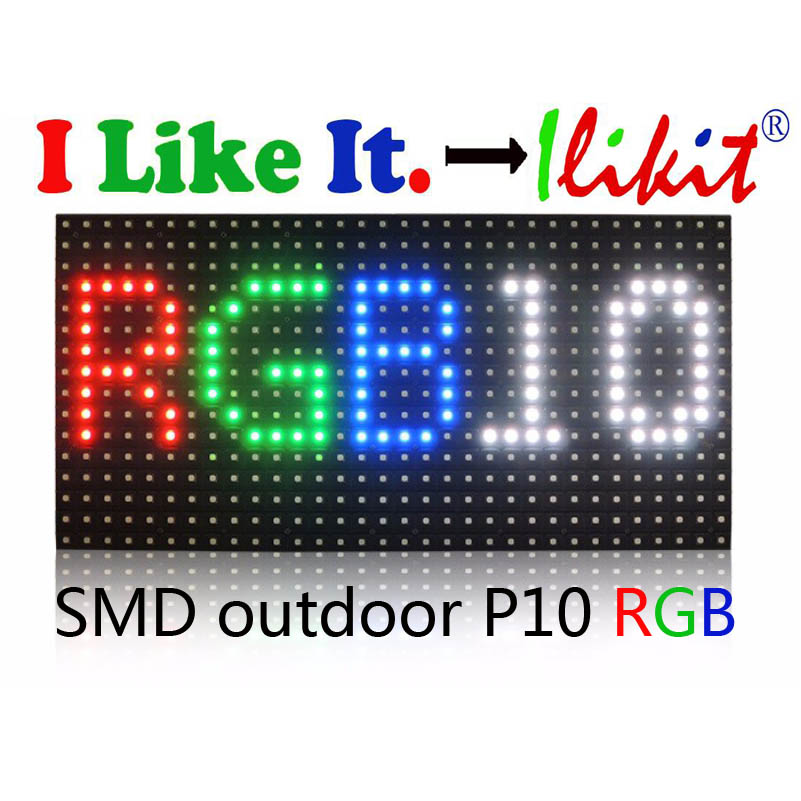

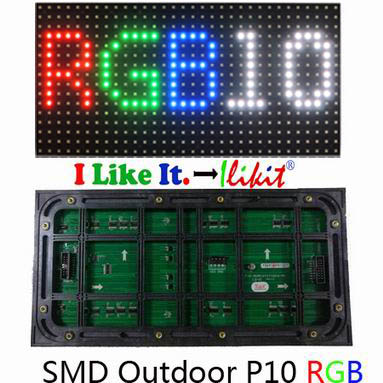

module No.:outdoor P10 RGB
- Model NO.
Waterproof P10 LED module for portable installation football perimeter stadium LED screen or fixed installation outdoor RGB LED billboard video wall advertising for Liverpool football team in Italy San Siro Stadium. Exterior P10 LED module with high performance SMD3535 at 320*160mm in temporary installation smart pole LED screen or wall mounted outdoor full color mobile truck LED billboard video wall OOH advertising for global brand jewelry Van Cleef & Arpels in Tokyo Haneda International Airport. Full colours P10 LED panel is suitable for fixed mounted front access moving truck LED screen or out of home portable installation LED billboard video wall advertising for top brand jewelry Tiffany & Co in Singapore Changi Airport
| Item | Unit | Parameter |
| Pixel Pitch | mm | 10 |
| Pixel Density | dots/㎡ | 10,000 |
| Resolution | dots | 32×16 |
| Size | mm | 320×160 |
| LED Chip | Epistar(SMD3535) | |
| Drive IC | DP5020 or FM6124 | |
| Brightness (White Balance) | cd/ ㎡ | ≥4000 |
| Refresh Rate | Hz/S | ≥1920 |
| Scan | 1/4 S | |
| Life Span | hours | 50,000 |
| Storage Temperature | ℃ | -35 -- +80 |
| Working Temperature | ℃ | -25 -- +60 |
| View Distance | m | 10--100 |
| Best View Distance | m | 20--45 |
| Working Humidity | 10-90％RH | |
| Warranty | 1 Year | |
