module No.:outdoor P3 RGB

Model NO.

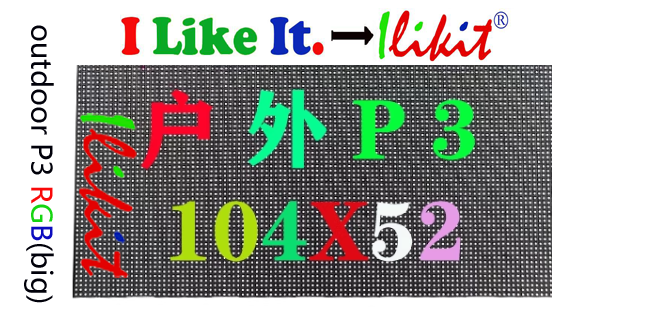

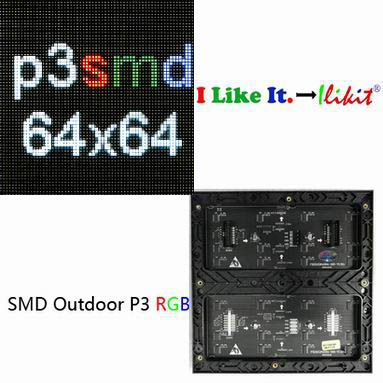

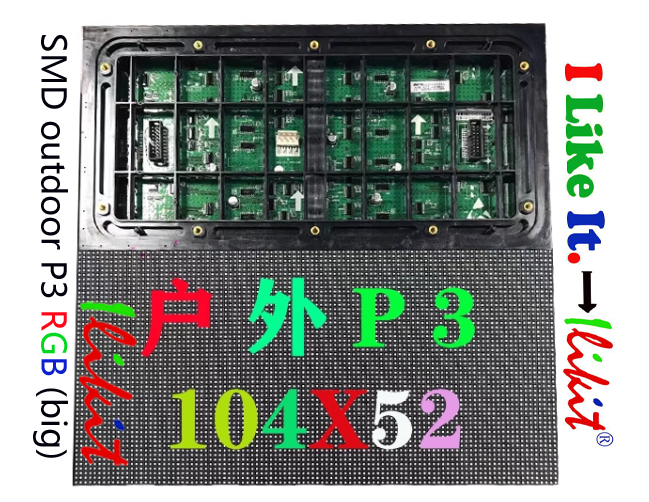

Waterproof P3 RGB LED module high refresh rate 3820Hz in ILIKIT fixed mounted outdoor 3D glasses-free LED screen or embedded exterior fixed installaion LED screen video wall DOOH advertising is a powerful and affordable advertising in Cité des Sciences et de l'Industrie.ILIKIT LED screen has years of experience in producing outside LED module SMD P3 for portable installation rental LED video billboard or temporary installation rental outside LED screen video wall advertising for global jewelry brand Graff in Boston Museum of Science. Ilikit LED company make sure you have a great experience at full colors SMD P3 LED module for portable installation rental waterproof naked-eyes 3D LED billboard or temporary installation high brightness outdoor LED billboard video wall DOOH advetising for top brand jewelry Buccellati in Ontario Science Centre

Contact Now

Product Description

Item (small size)	Unit	Parameter	Item (big size)	Unit	Parameter
Pixel Pitch	mm	3	Pixel Pitch	mm	3
Pixel Density	dots/㎡	111,111	Pixel Density	dots/㎡	105,688
Resolution	dots	64×64	Resolution	dots	104*52
Size	mm	192×192	Size	mm	320*160
LED Chip	Epistar(SMD1415)		LED Chip	Epistar(SMD1415/1921)
Drive IC	DP2037or FM6124		Drive IC	DP2037or FM6124
Brightness (White Balance)	cd/ ㎡	≥5500	Brightness (White Balance)	cd/ ㎡	≥5500
Refresh Rate	Hz/S	≥1920	Refresh Rate	Hz/S	≥1920
Scan	1/16S		Scan	1/13S
Life Span	hours	50,000	Life Span	hours	50,000
Storage Temperature	℃	-35 -- +80	Storage Temperature	℃	-35 -- +80
Working Temperature	℃	-25 -- +60	Working Temperature	℃	-25 -- +60
View Distance	m	3--50	View Distance	m	3--50
Best View Distance	m	6--25	Best View Distance	m	6--25
Working Humidity	10-90％RH		Working Humidity	10-90％RH
Warranty	1 Year		Warranty	1 Year
